Description
SPECIFICATIONS
After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: NoEnName_Null,YG
Certification: CE,ISO CE
Condition: New
Core Components: Pump, Engine
Dimension(L*W*H): 2400*950*1400mm
Drilling Depth: Max.200m
Drilling Diameter: 130-350mm
High-concerned chemical: None
Key Selling Points: Flexible Manufacturing
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Maximum diameter: 75-150mm

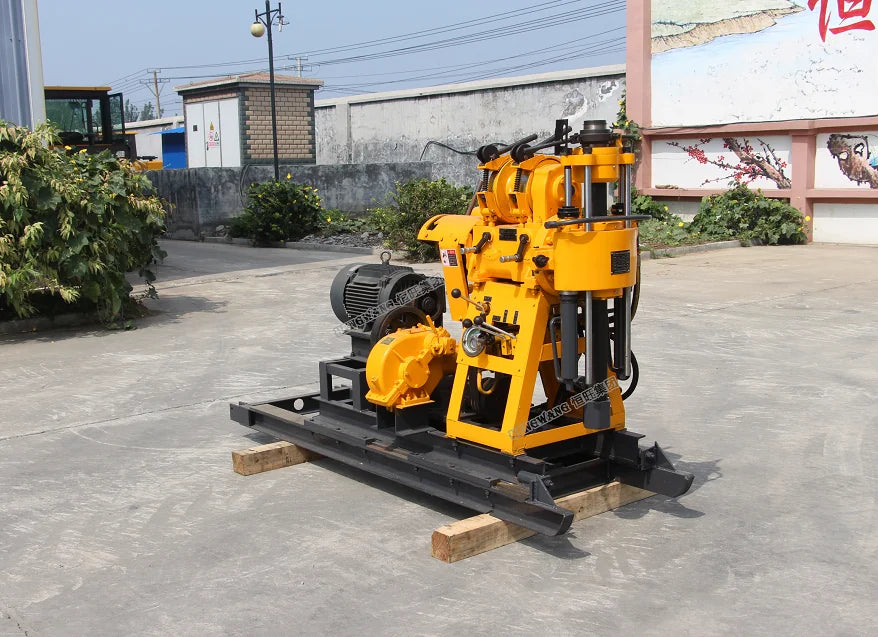

Name: Portable Water Well Drilling Rigs
Origin: Mainland China
Place of Origin: Shandong, China
Power Type: Diesel, Diesel
Showroom Location: None
Type: Rotary Drilling Rig
Use: Water Well
Video outgoing-inspection: Provided
Voltage: drilling rig
Warranty: 1 Year
Warranty of core components: 1 Year
Weight: 2880 KG
Working air pressure: 1.05-4.5MPa
drill rod caliber: 50mm
end hole caliber: 75mm
power source: diesel
spindle stroke: 450mm
PLEASE NOTE:
1.This is a customized machine. The price on the page is only a deposit, and does not include shipping, accessories and packaging fees.
2.Please contact Karen for a free quote❤
Whatsapp/WeChat/Phone number : +86 19937147086
Email : SNOWing2001@outlook.com
Product Description
Hydraulic core drilling rig is mainly used for geological general investigation and exploration, kinds of hole in concrete structure,road and tall building foundation exploration, river levees, sub-grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc.
It also can add two wheels and four weels and hydraulic drill mast and change to electric engine

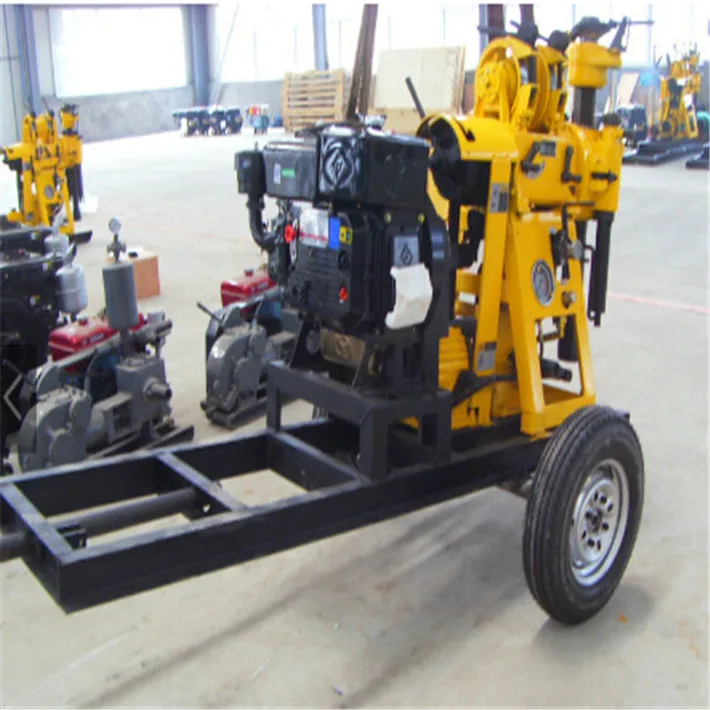

drilling rig with two wheels

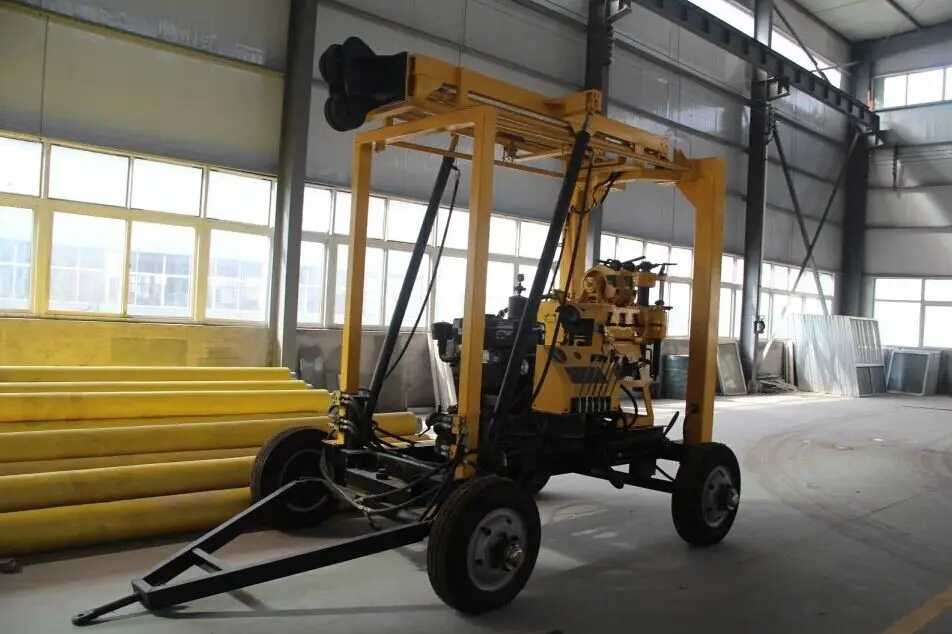

drilling rig with four wheels
hydraulic drill mast electric engine
Technical Parameter
|
|
Model
|
YG-160/160YY
|
YG-190/190YY
|
YG-230/230YY
|
|
|
Drilling depth(m)
|
160
|
190
|
230
|
|
|
Open hole dia. (mm) Soil/rock
|
500、 220
|
500、 220
|
500、273
|
|
|
End hole dia. (mm)
|
75
|
75
|
75
|
|
|
Drill rod dia. (mm)
|
42、50
|
42、50
|
42、50、60
|
|
|
DriU angle C )
|
90-75
|
90-75
|
90-75
|
|
|
Matching engine power (kW)
|
13.2
|
13.2
|
15
|
|
|
Weight without engine (kg)
|
600/740
|
620/750
|
880/970
|
|
|
Machine Dimension L*W*H (m)
|
2.4*0.8*1.3
|
2.4*0. 8*1.4
|
2. 7*0. 9*1.5
|

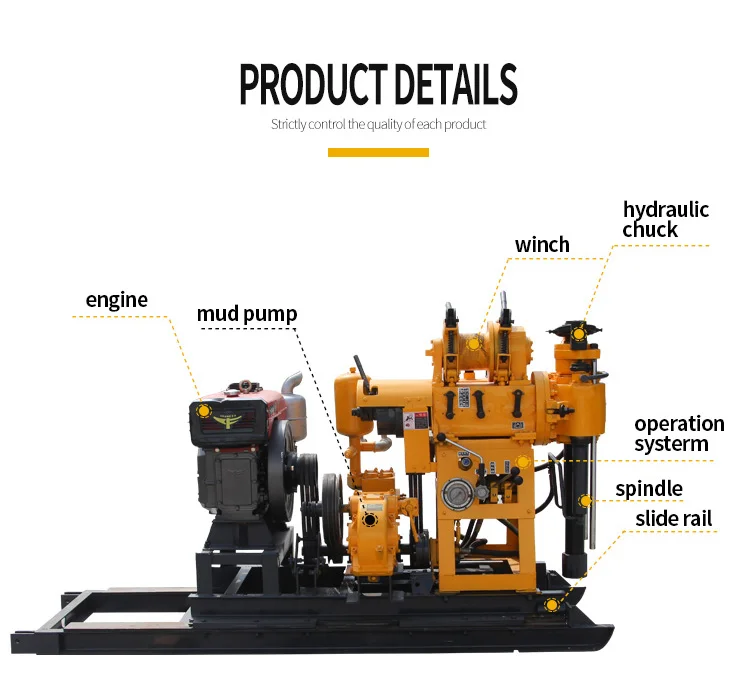

Products Details
Spare parts

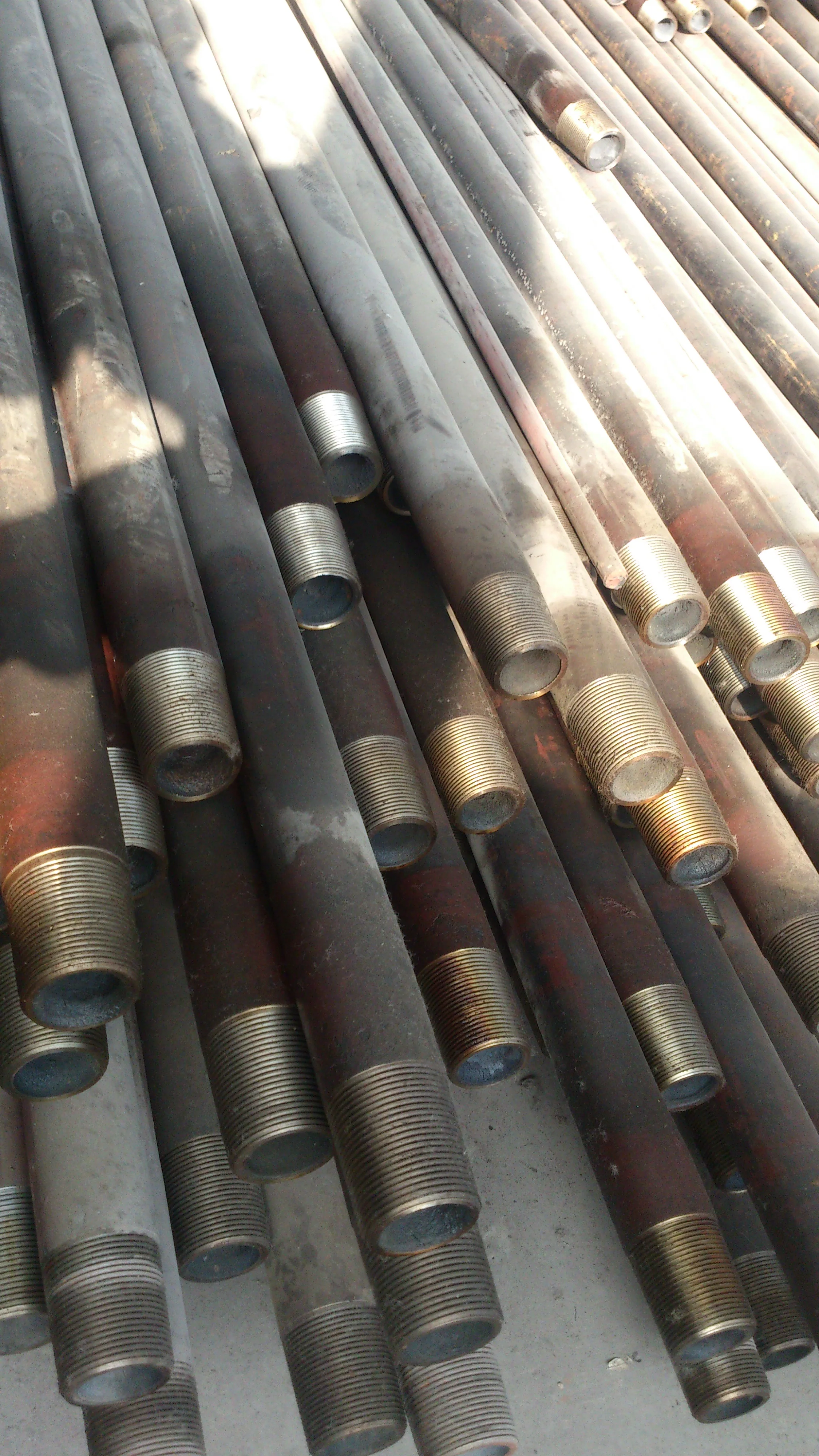

Drill pipe
According your depth and diameter to choose drill pipe size

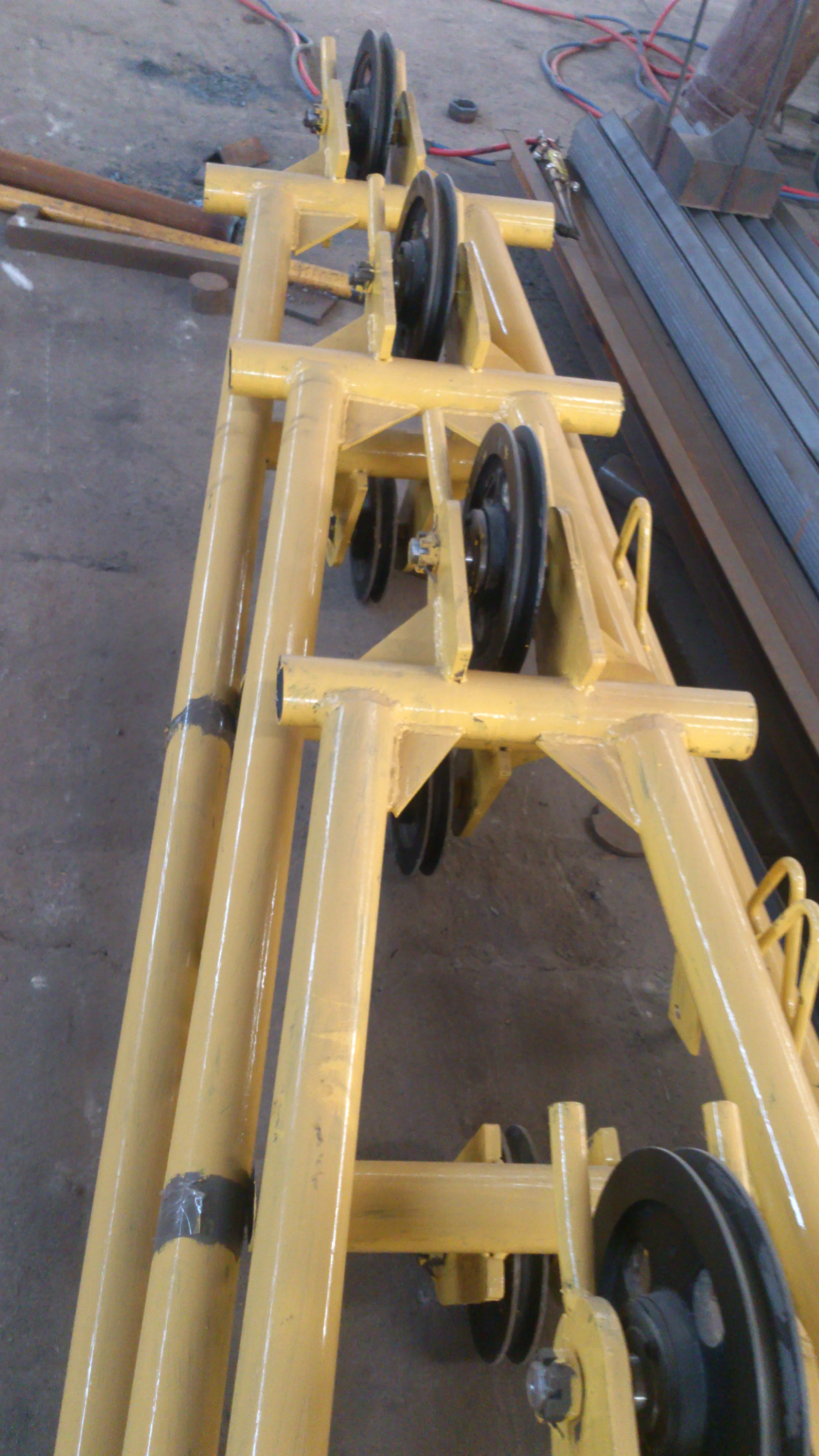

Drill Mast
6M or hydraulic drill mast

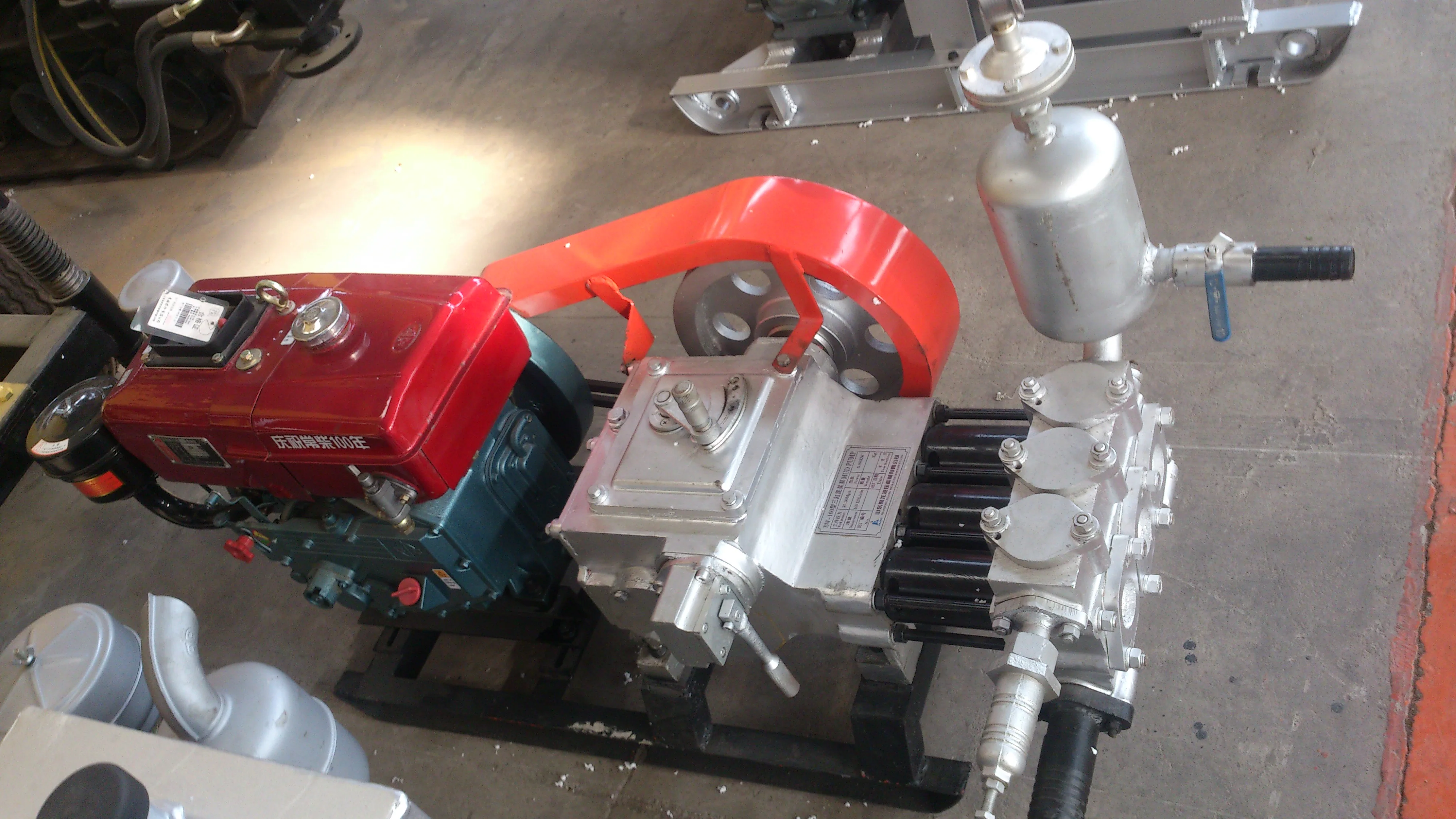

Mud pump
According drilling depth and diameter choose drilling rig and mud pump

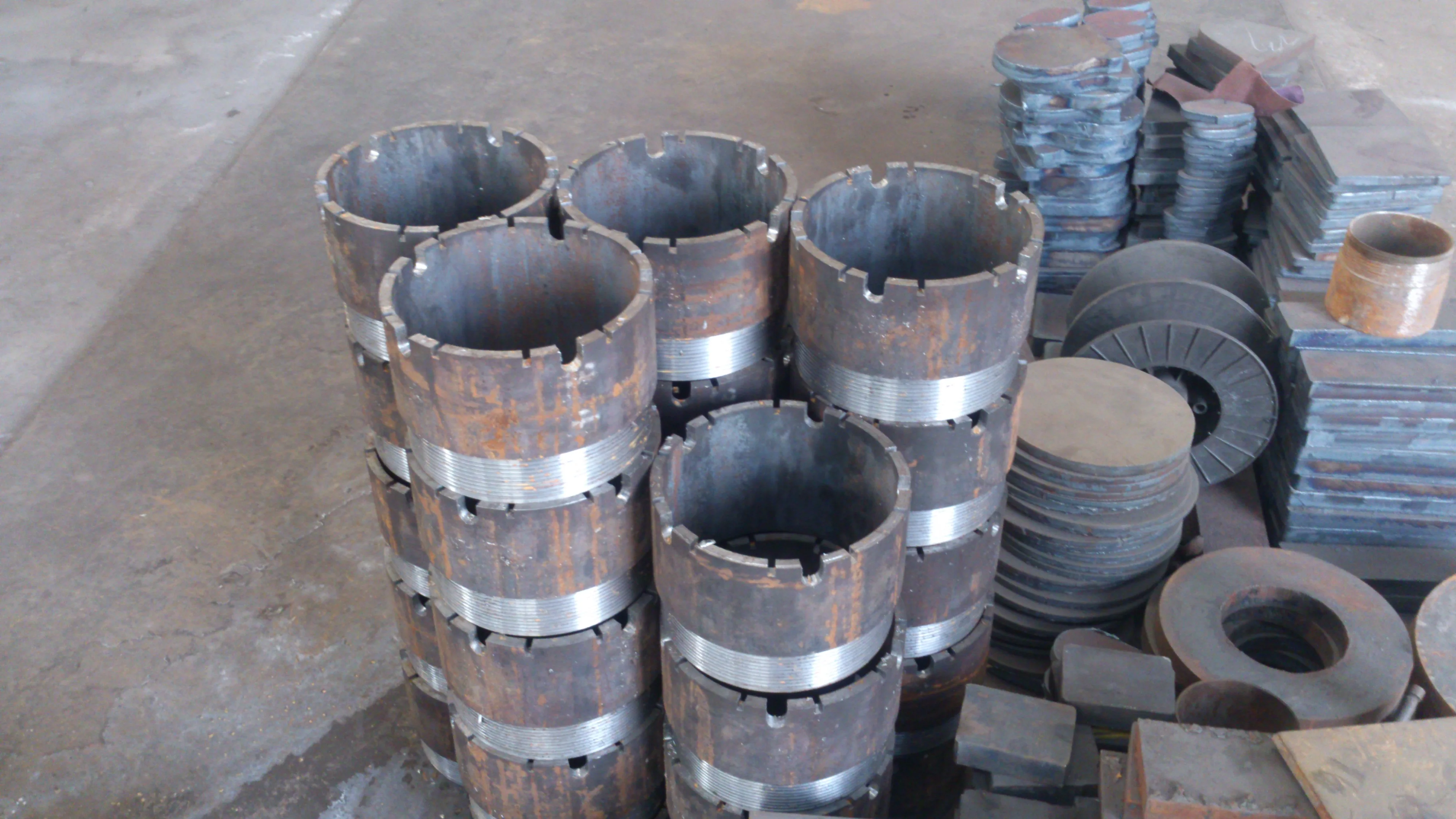

Alloy bits
we have many kind of drill bit , like alloy bit , tricont bit , Three-wings bit, Diamond bit . According customer drill require to choose

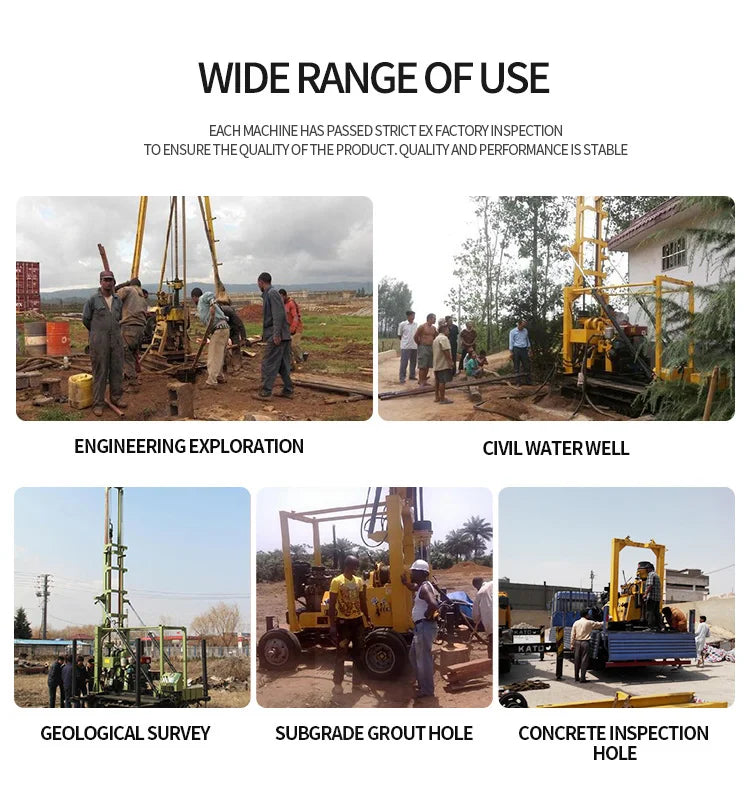

Application

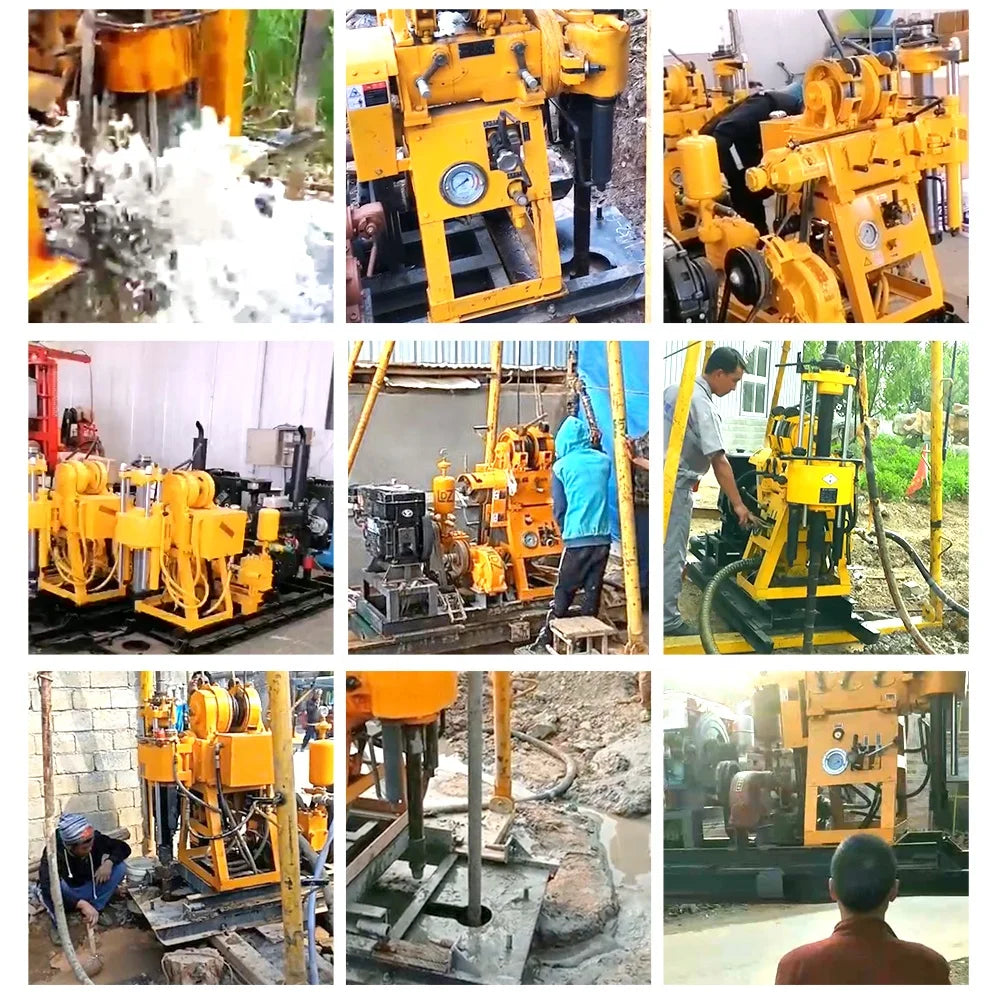

This hydraulic water well drilling rig is simple,should be equipped with mud pump to works,main used for family and farm water well drilling,it main suitable for soil geology,also can drill soft rock,this water well drilling rig has different chassis,can add wheels,also can change with crawler chassis,if you want to move it far,can add it on a truck,we are factory,so we can accept customized,please contact us for more information.

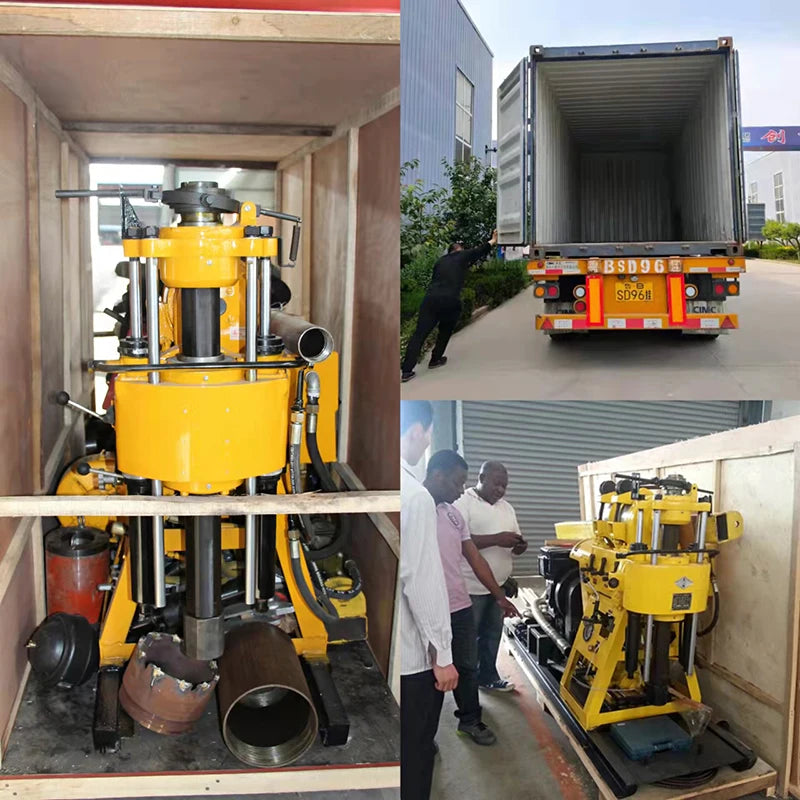

Shipping
This small hydraulic water well drilling rig 6 sets can be load by one 20 feet container.If you want to buy one set,it should be packed by one export wooden box.

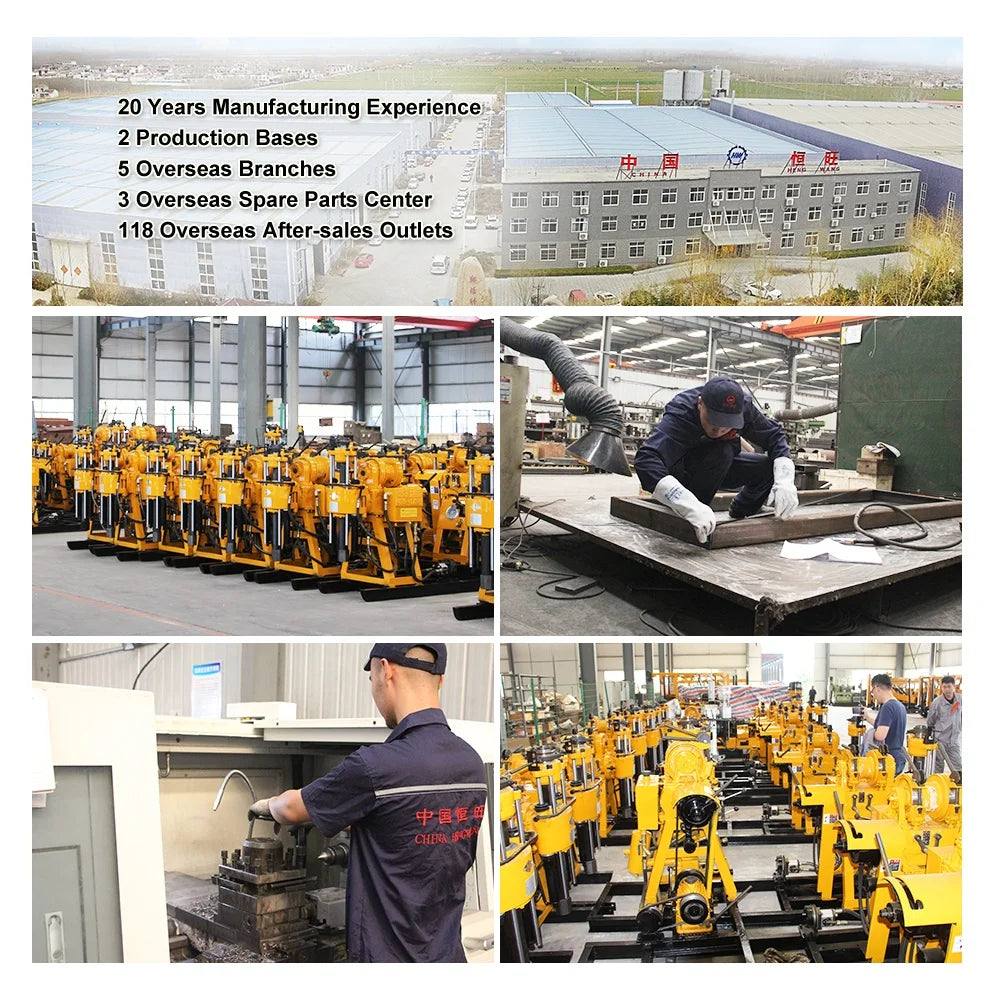

Our Company
